Name: 1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic PDC
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2
Price: 50.00 USD
Availability: InStock

Rumah Produk 1A1 Roda Berlian

1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic PDC

Detail produk:

Tempat asal:	Cina
Nama merek:	Shine Abrasives
Sertifikasi:	ISO
Nomor model:	4V2 1A1 14A2

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	2 pcs
Harga:	FOB
Kemasan rincian:	satu dalam kotak kertas
Waktu pengiriman:	5 hari kerja
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	1000 PCS dalam satu minggu

Kontak

Detil Deskripsi produk

Kemampuan Menggiling:	Tinggi	Ukuran butir:	disesuaikan
Bahan abrasif:	berlian	Bentuk roda:	Bulat
Jenis roda:	lurus	Aplikasi:	Menggiling
Ukuran Pelek:	20mmx10mm	Jenis Obligasi:	Resin
Diamant Grit:	D126	Tingkat kekerasan:	Sedang
Bahan:	berlian	Warna:	Hijau merah
Paket:	Kotak	Perbaikan permukaan:	Lempar
Kecepatan maksimum:	disesuaikan

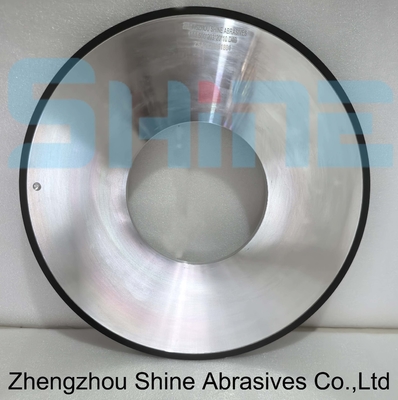

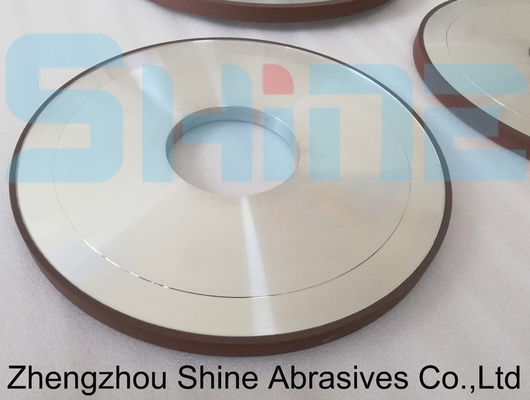

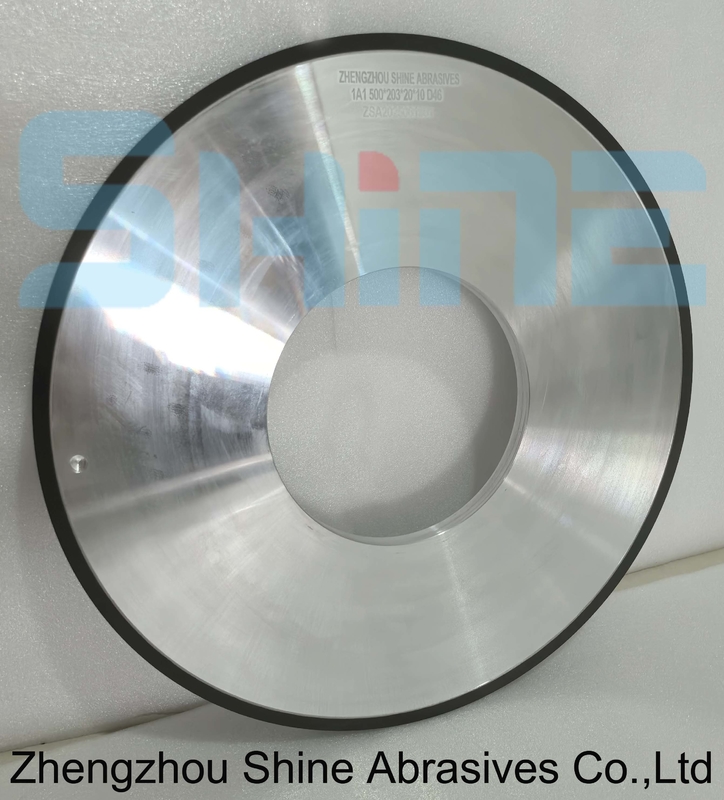

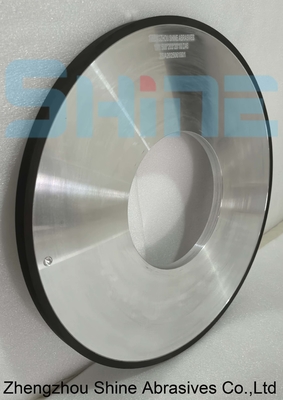

1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic PDC

1A1 resin grinding wheel is mainly used in pdc drilling bit, pdc cutter/inserts, tungsten carbide coating/insert, caibide coating, hardfacing coating.Resin Bond is the most common choice in Diamond and CBN super-abrasive wheels. It forms a bond structure that keep the wheel sharp cutting, super surface finish, efficient grinding and less heat generating.

Type	1A1 Flat resin bond diamond grinding wheel
Concentration	50%,75%,125%,150%
Mesh	46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding); 280#,320#,400#,500#,600#(fine grinding); 800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification	D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75 D175-H127-X4-T5 D250-H40-X10-T3 D300-H127-X10-T40 D350-H127-T20-X10 D400-H127-T40-X10 D500-H203-X10-T32 Specification sizes can be customized
Application	ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc
